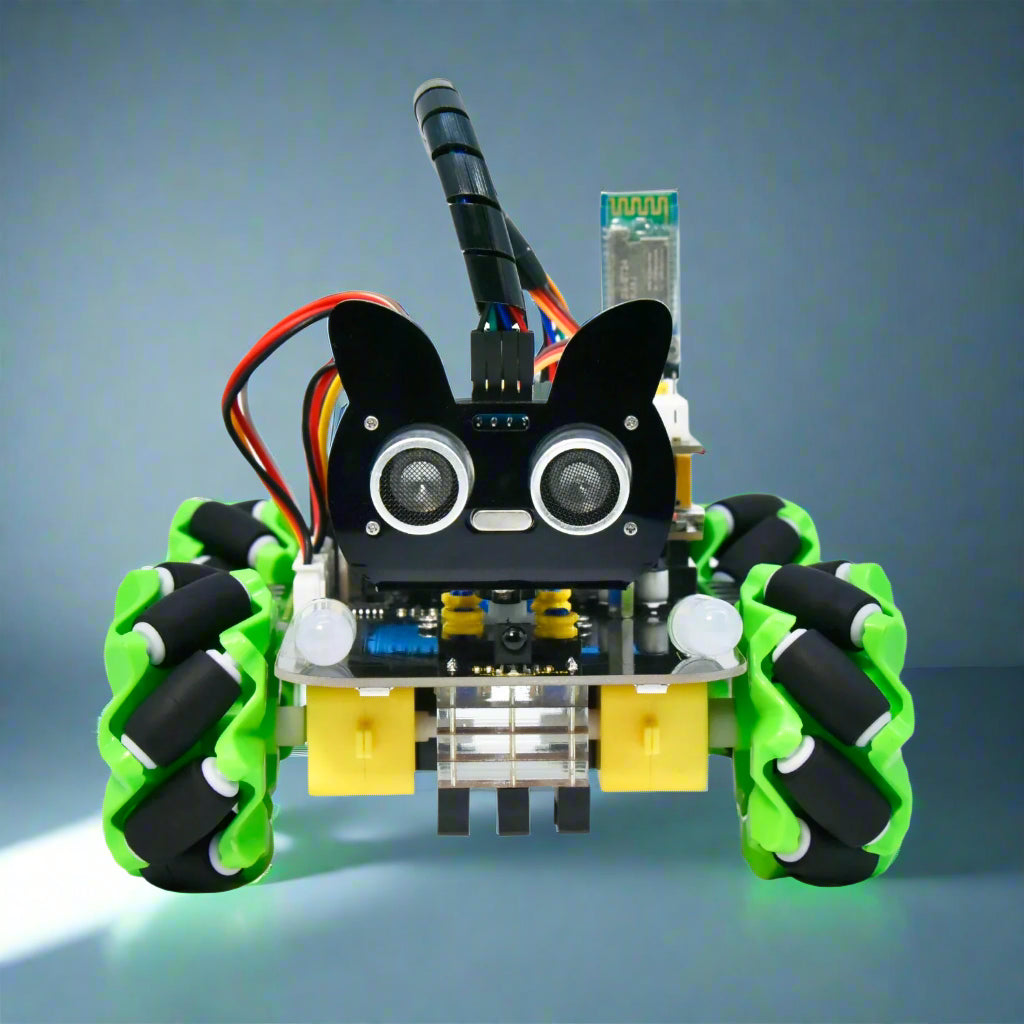

Arduino 4WD Mecanum Robot Car Kit

This Arduino 4WD Mecanum robot car kit is built to move in more directions than a standard wheeled robot. Its four Mecanum wheels allow forward, backward, sideways, diagonal, and in-place turning movements.

The kit includes 12 progressive STEM courses covering programming, electronics, mechanics, control logic, and computer science. It can be programmed with Arduino IDE using C or with Scratch graphical programming.

Movement and control

• 4WD Mecanum drive: Move forward, backward, sideways, diagonally, and rotate in place.
• Bluetooth control: Control range up to 50 meters with Android and iOS compatibility.
• IR remote control: Control range up to 10 meters.
• Motor speed: 200 RPM at 5V.

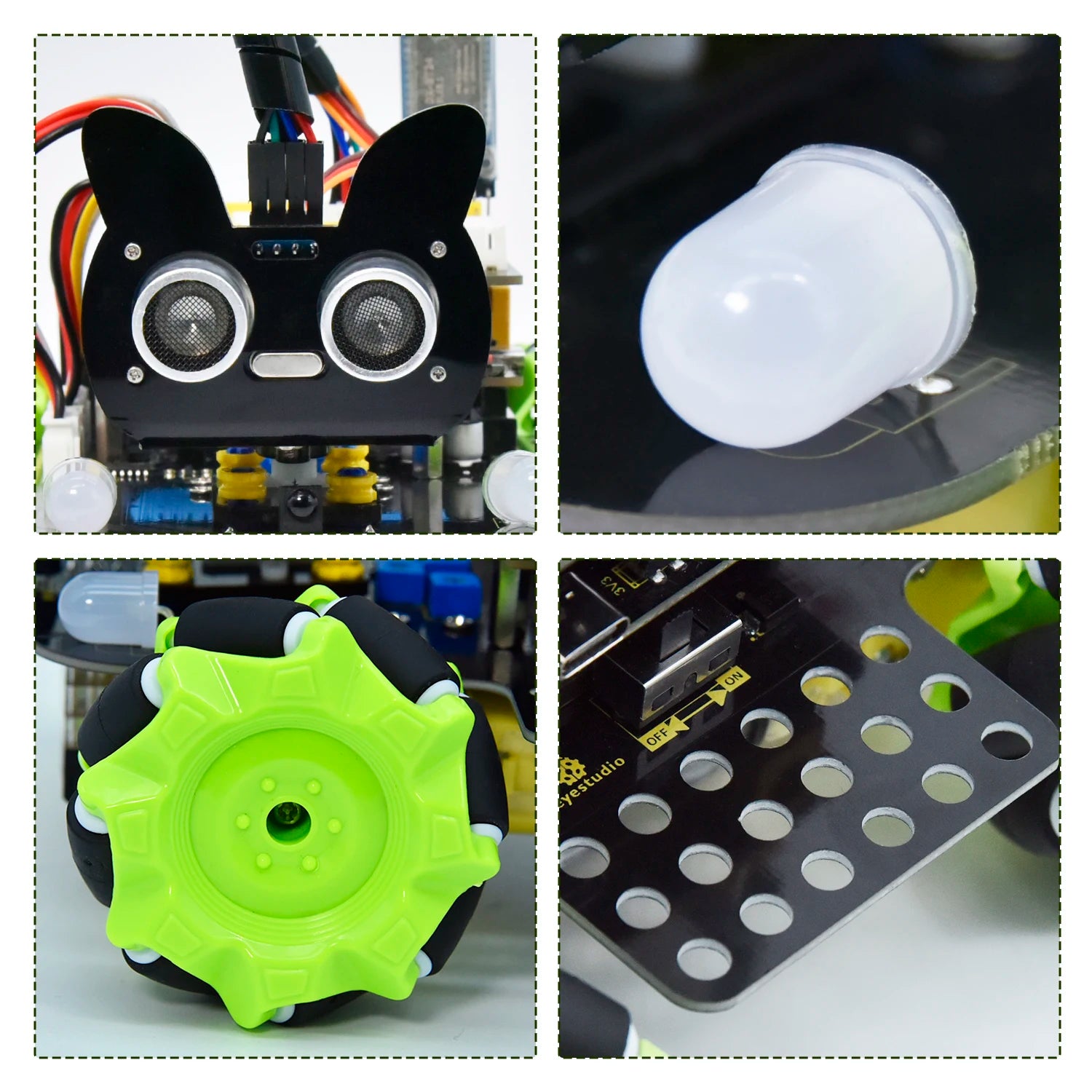

Sensors and learning functions

• Ultrasonic obstacle detection with a range of 2–400cm
• Car tracking function
• Color LED display functions
• 12 progressive STEM courses
• Arduino IDE programming in C
• Scratch graphical programming

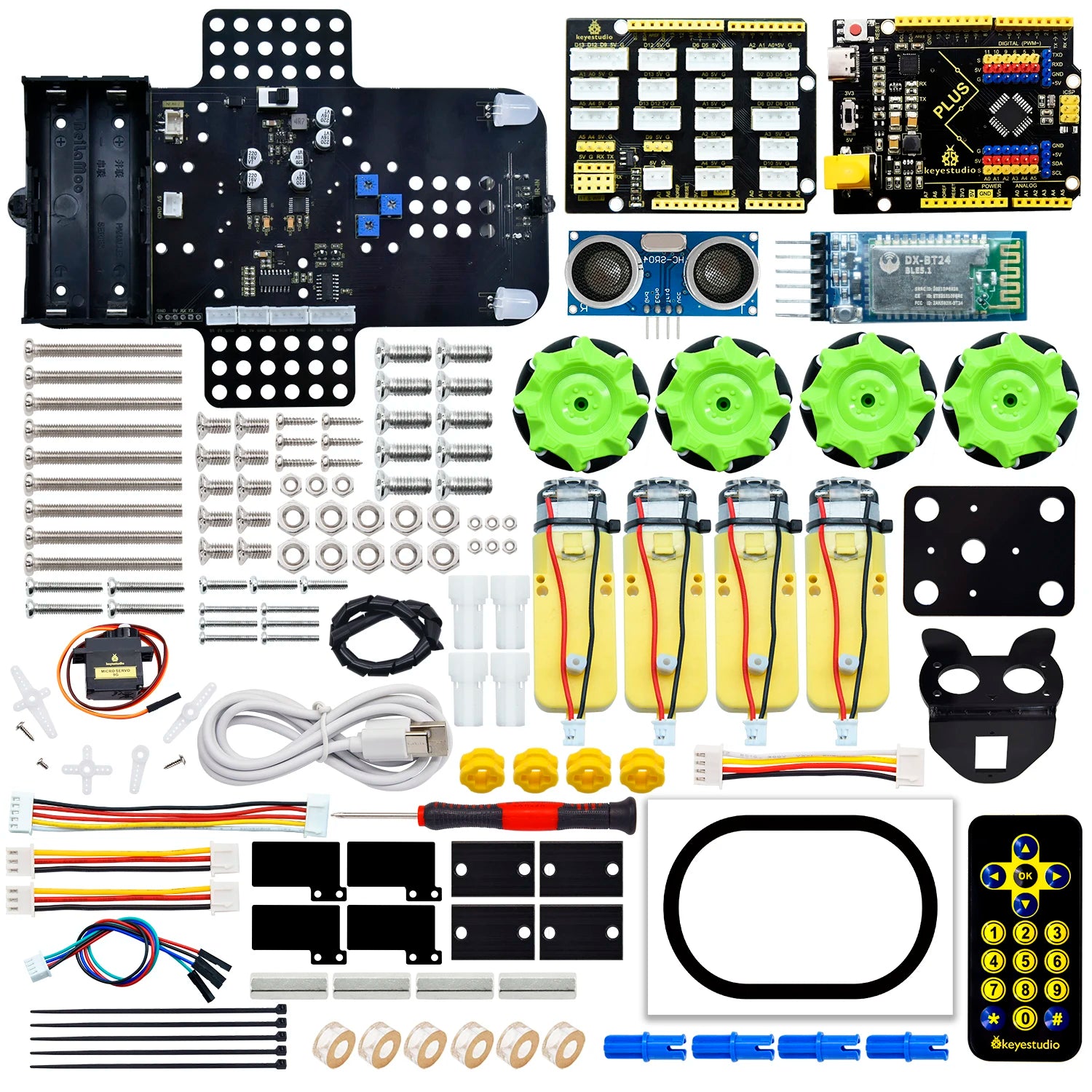

Assembly and expansion

The integrated bottom plate simplifies wiring and allows assembly without soldering. IIC, UART, and SPI connections support additional sensors and modules, and the platform supports ESP8266 WiFi expansion.

Technical specifications

• Controller: UNO PLUS control board
• Motor driver: DRV8833
• Drive system: 4WD Mecanum wheels
• Input voltage: 7–12V
• Working voltage: 5V
• Motor speed: 200 RPM at 5V
• Bluetooth range: Up to 50m, Android and iOS compatible
• IR range: Up to 10m
• Ultrasonic range: 2–400cm
• Programming: Arduino IDE (C) and Scratch
• Expansion interfaces: IIC, UART, and SPI
• WiFi expansion: Supports ESP8266
• Battery: Requires 18650 batteries, not included
