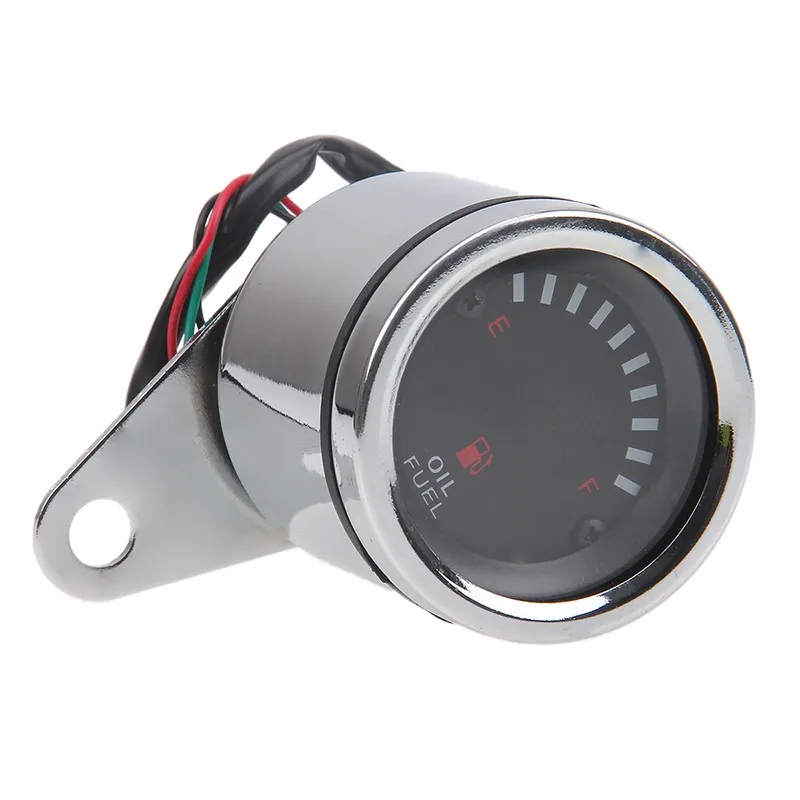

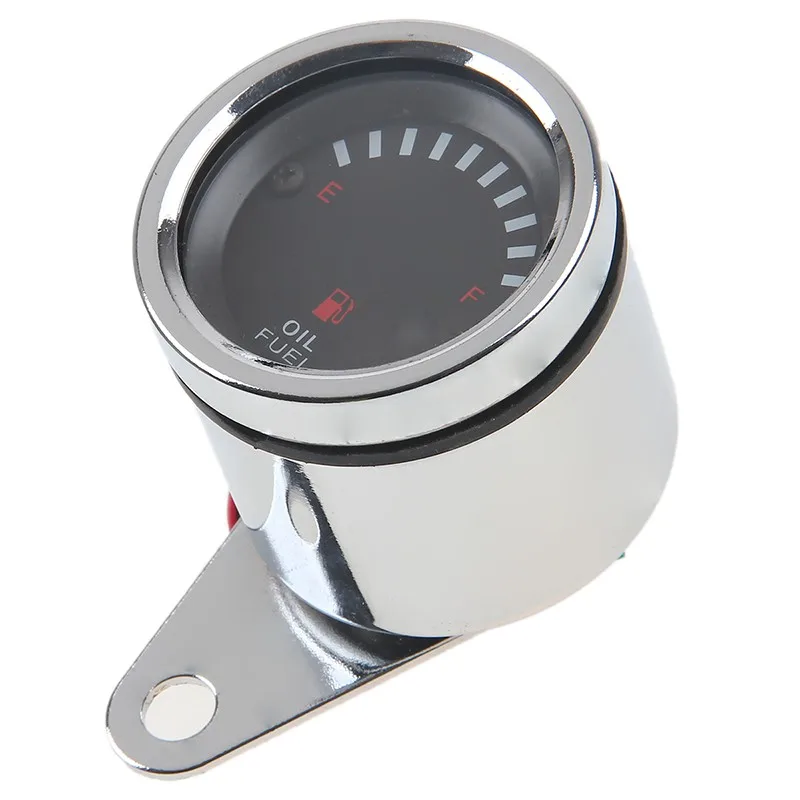

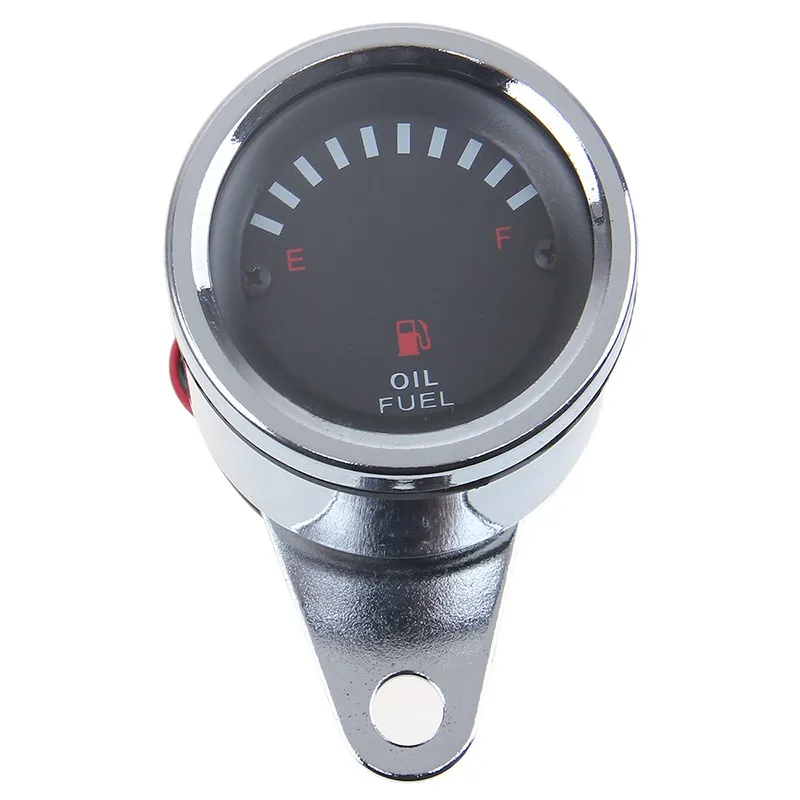

Universal Motorcycle Fuel Gauge

product badges



Specification:
Material: Stainless Steel

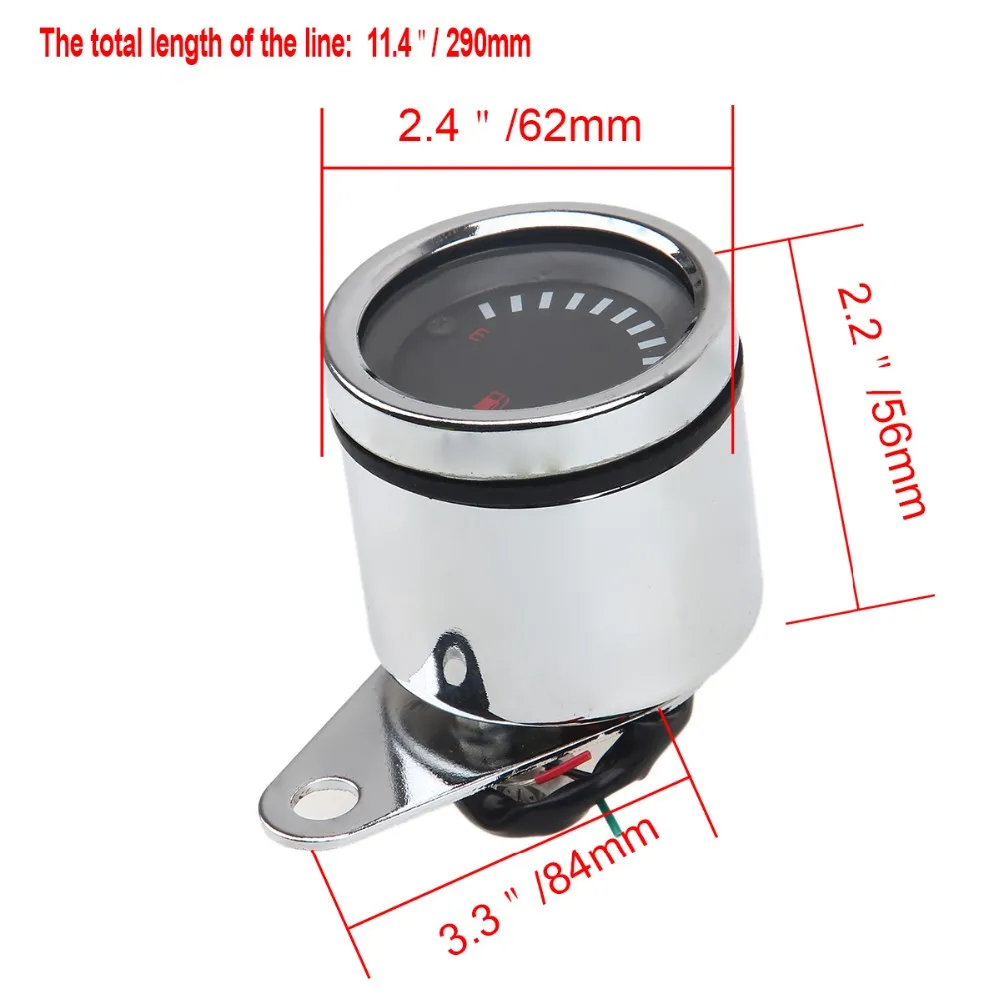

Dimension: 56*62 mm H*W (as the picture is shown)

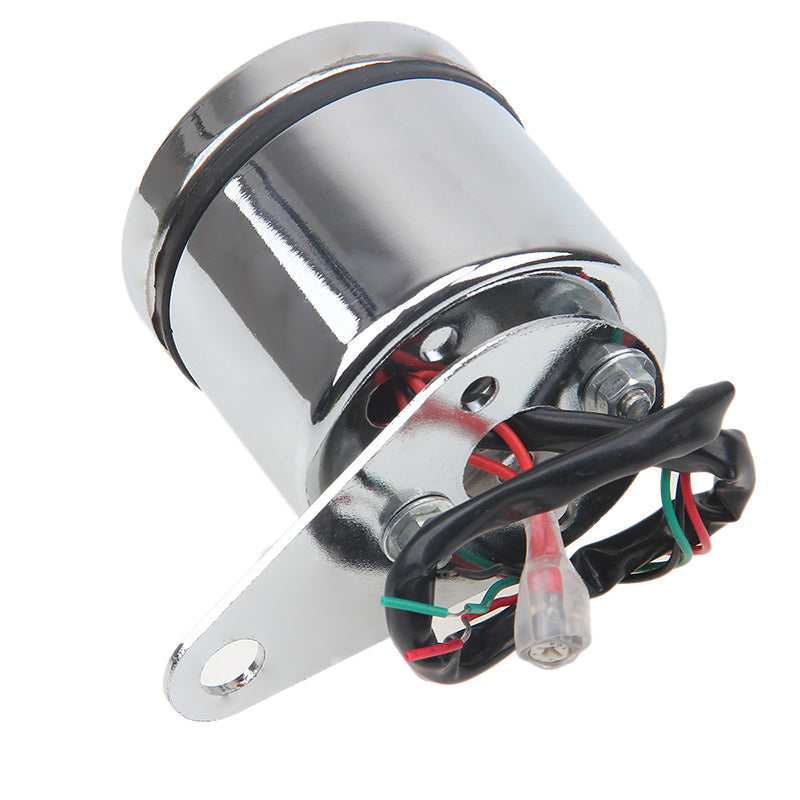

Wire Length: Approx. 30 cm(11.8'')
Color: Chrome
Operating Voltage: DC 12 V
LED Indicator Display:

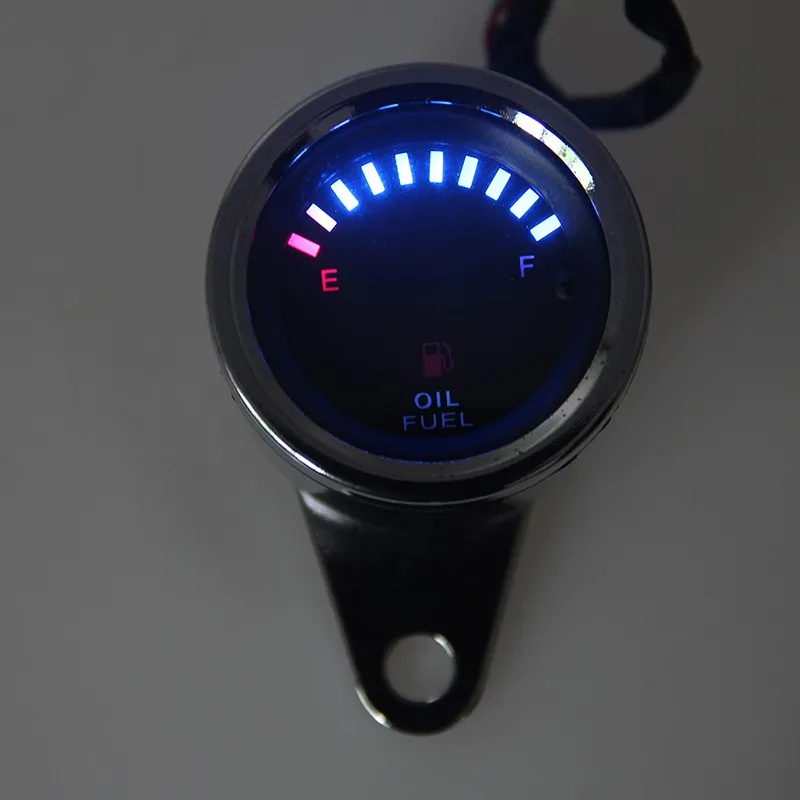

Blue / Red LED: Oil Level ( as the picture is shown)
Description:
High quality, waterproof
High performance, Fuel Gauge
Easy installation and high accuracy
Bright LED reads out, easy viewing at all angles during lighting conditions
SMD chip electronic components, processed by automatic placement machine,
stable operation, suitable for motorcycle modifying.

Fuel gauge installation and debugging methods:
1. Connect the positive and negative pole to power supply correctly.
2. Turn on the electric door switch, fuel gauge displays a grid of Blue,
and then connected signal line to the negative pole.
Wait for a while, LED light will all light up slowly, indicating normal operation.
3. Connect the signal line, fill up, slowly adjust the potentiometer to make all the LED lights on.
When oil runs out, slightly adjust potentiometer so as to make only one red LED light on.
Please note: The original fuel gauge can not be used together
Package:
1 X Fuel Gauge













Shipping Info:
- Estimated Delivery Time: US 15-25 Days; Worldwide 15-30 Days.
